NewTom 7G VET

$0.00

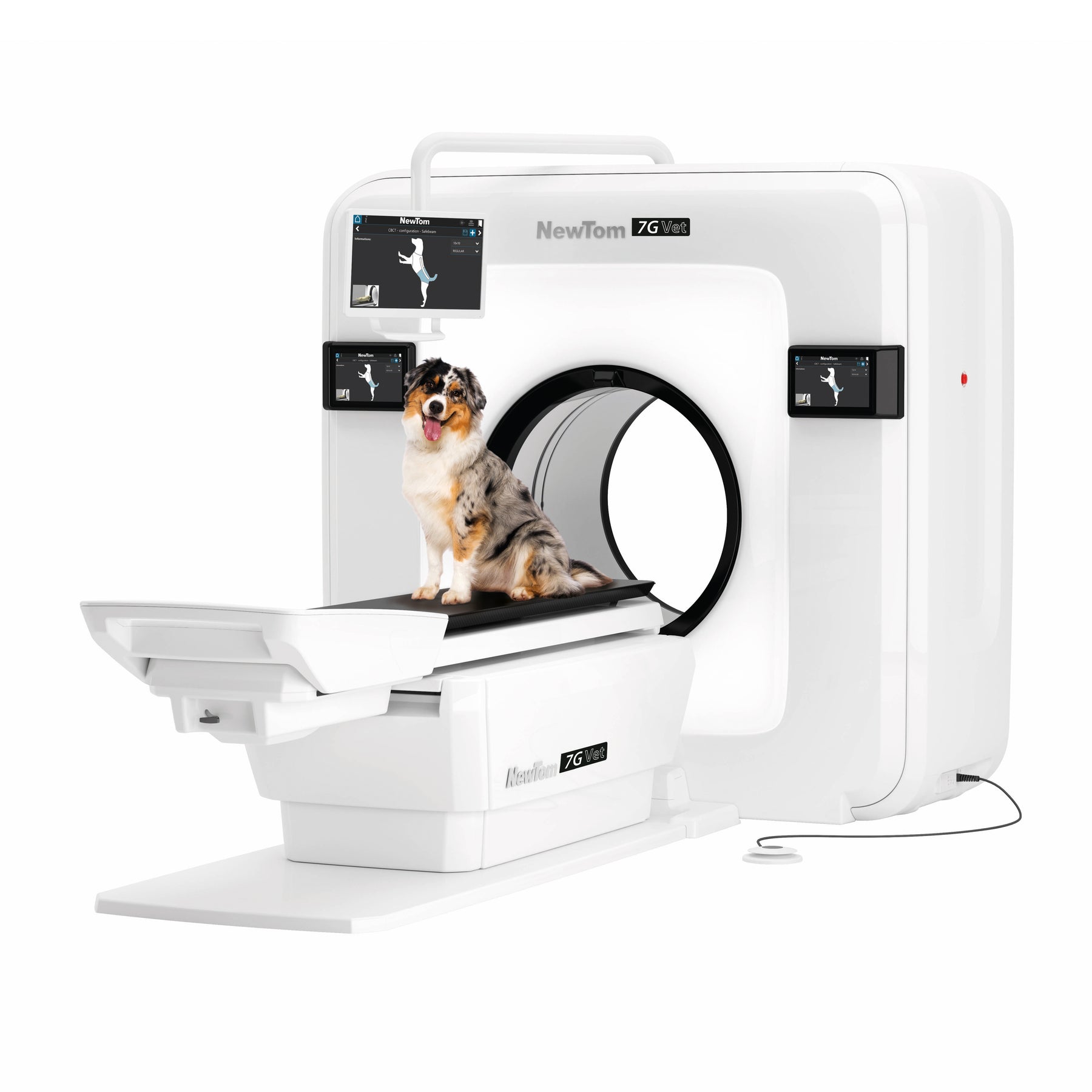

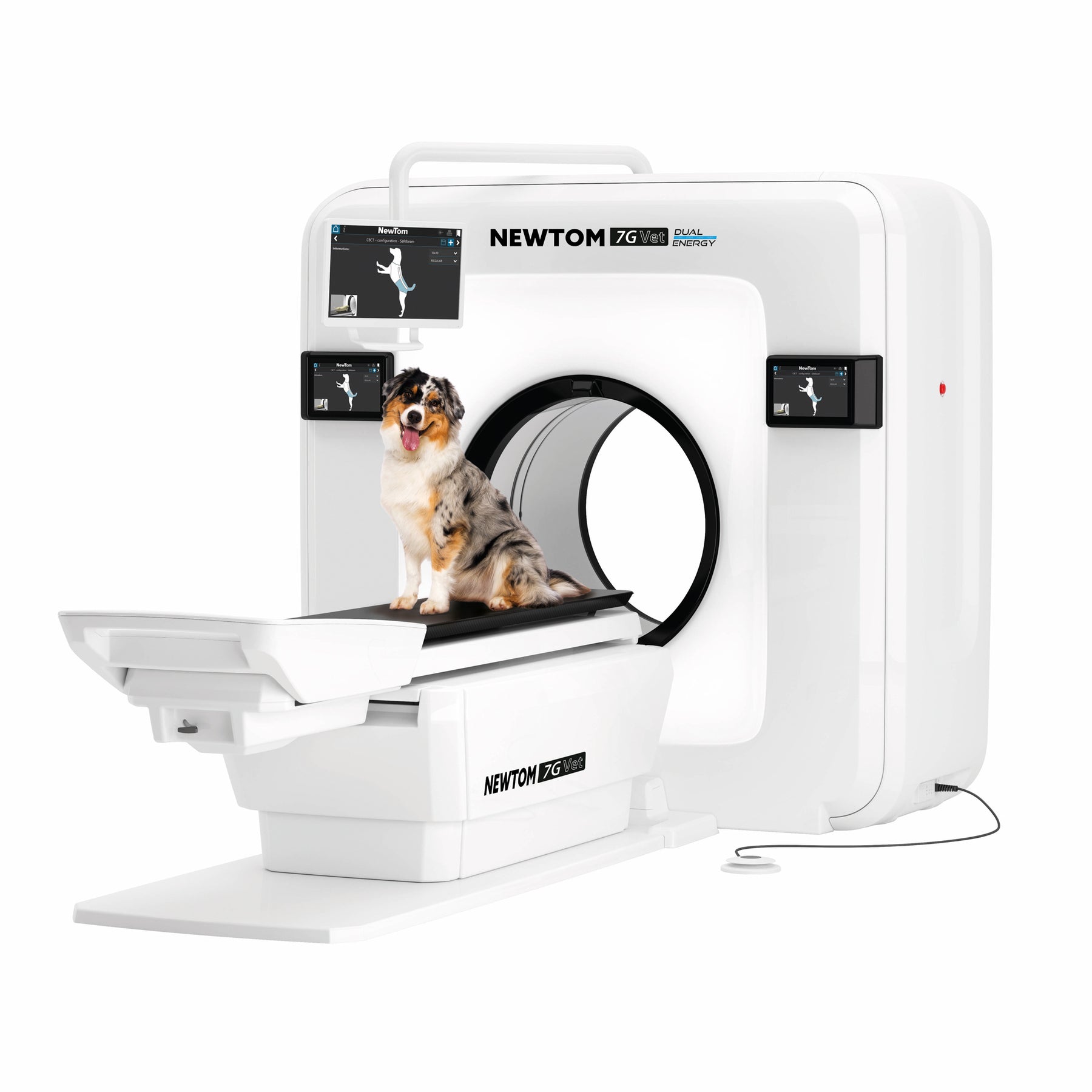

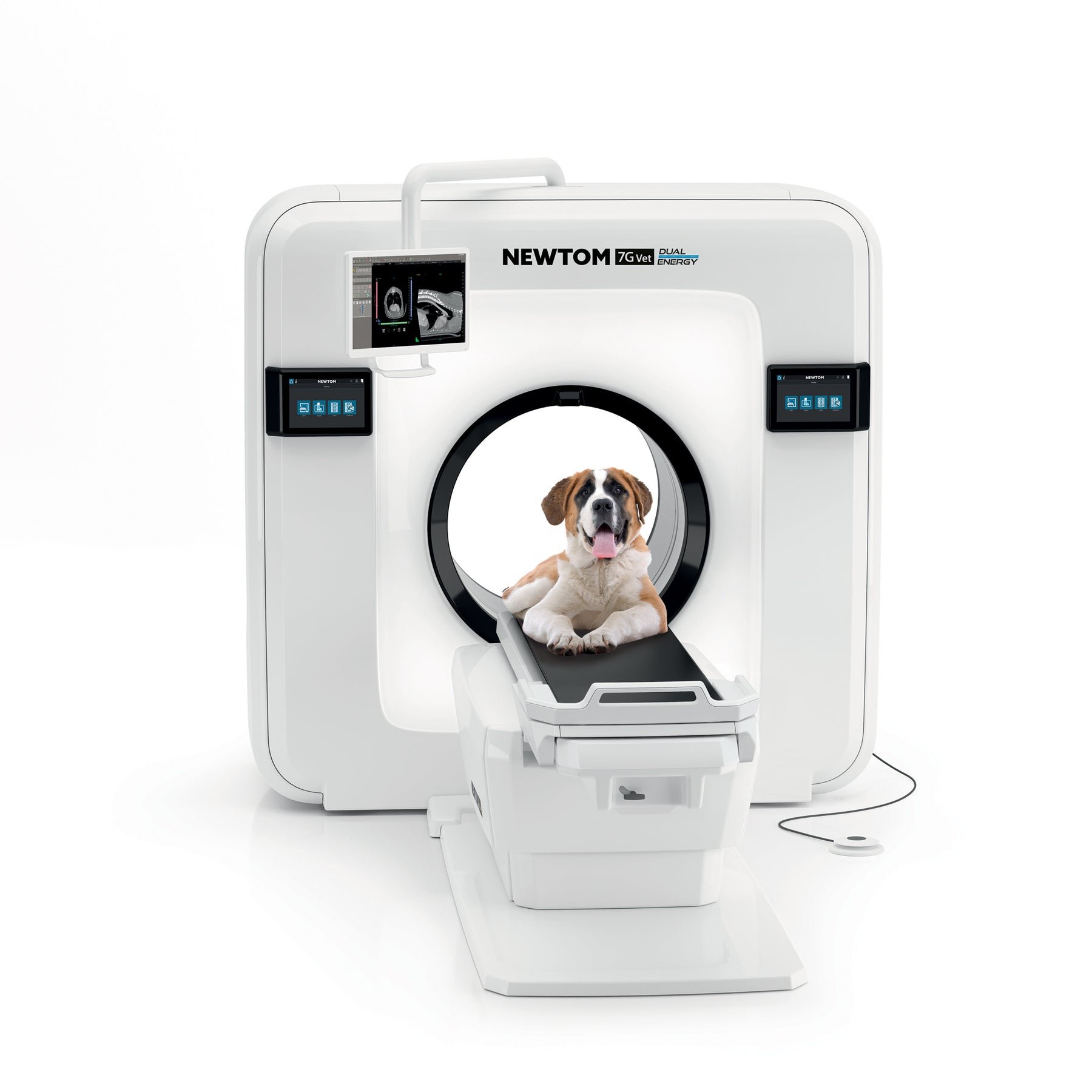

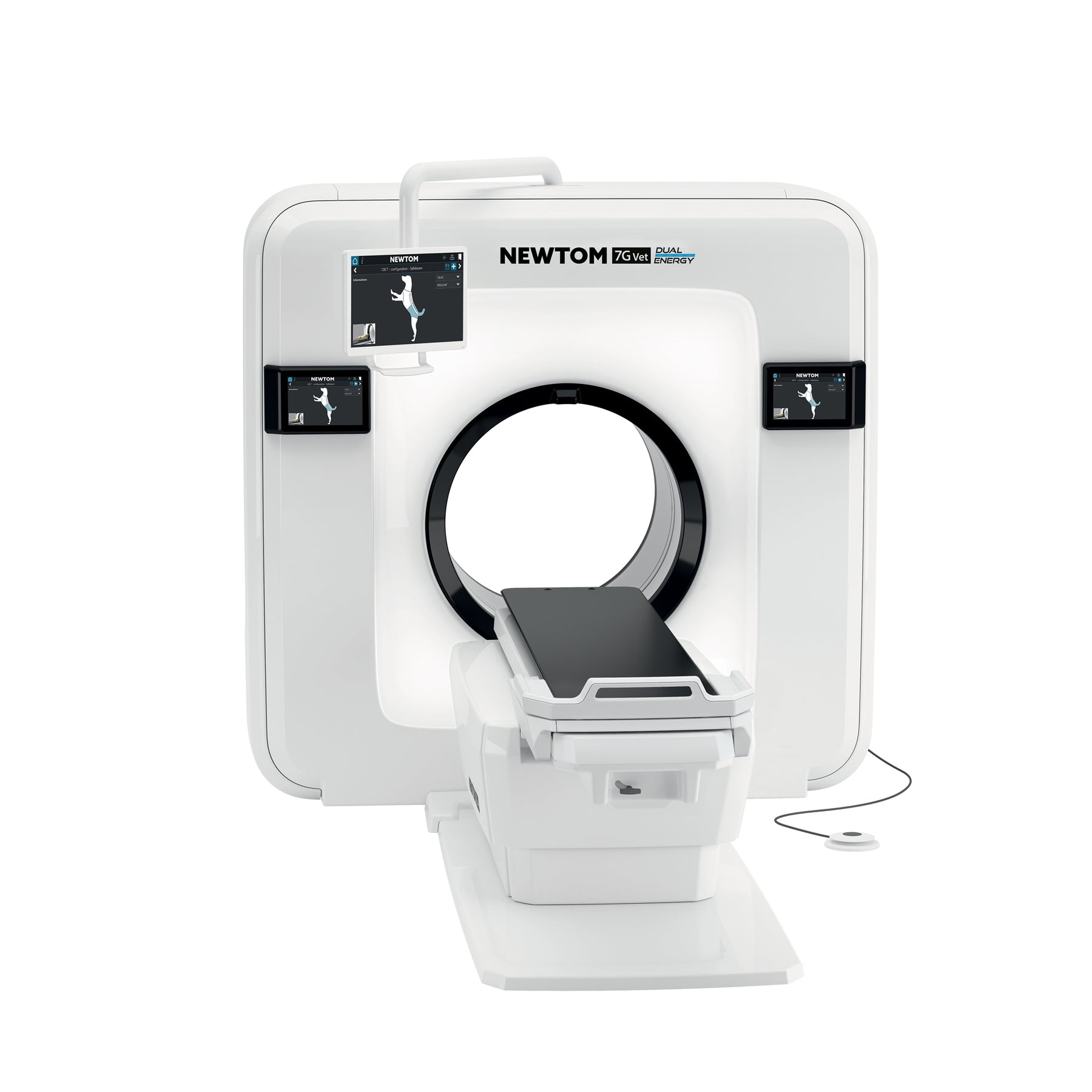

Experience the next generation of veterinary imaging with the NewTom 7G VET. Now with Dual Energy the 7G VET is a whole-body Cone Beam CT scanner designed for superior diagnostic precision across all animal sizes. Combining Dual Energy technology with low-dose CBCT, the 7G VET delivers unmatched clarity and tissue differentiation while ensuring patient safety and workflow efficiency.

Dual Energy acquisition uses two distinct radiant energies to capture complementary image sets of the same anatomical region, enhancing diagnostic accuracy and enabling detailed tissue characterisation. This innovation allows differentiation between bone, soft tissue, and other structures, providing more reliable insights for complex cases such as orthopaedic, neurological, and oncological evaluations.

With resolutions up to 90 μm, the 7G VET Dual Energy visualises even the most delicate structures, from the inner ear to fine dental and skeletal anatomy. The large gantry and motorised table supports animals of varying sizes, weighing up to 215kgs, while adaptive FOVs and automatic dose modulation ensure optimal imaging for every patient, every time.

FEATURES
SPECIFICATIONS
DOWNLOADS
CLINICAL IMAGES

FEATURES

The first multi-scan body Cone Beam CT now with Dual Energy technology.

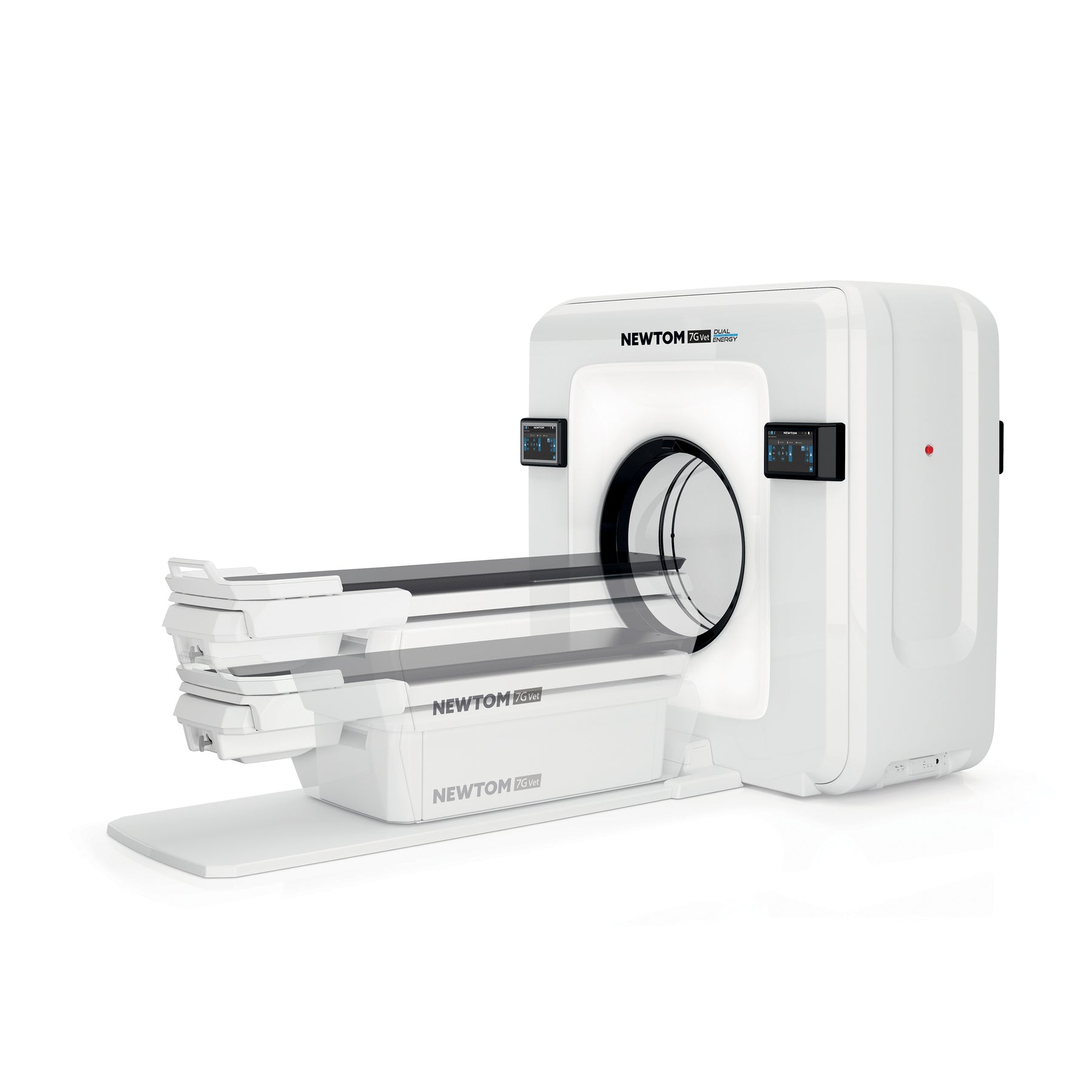

The NewTom 7G VET Dual Energy is the first CBCT system capable of imaging the entire body including the abdomen, chest and full length of limbs. The 7G VET CT has all the functions and automatisms needed to adapt FOVs and X-ray doses to the patient's size. With a resolution of up to 90 µm, highly complex body areas such as front and rear leg joints can be scanned to detect hairline fractures or osteochondral lesions. The motor-driven patient table, with its large-sized, steady stretcher guarantees user-friendly and accurate alignment of FOVs, for even more reliable results.

Dual Energy.

Dual Energy tomography employs two distinct radiant energies to acquire two sets of images of the same anatomical area. Soft tissues have different sensitivities to different energy levels which is why the 7G VET CT can now deliver advanced image reconstruction for enhanced diagnostic clarity. Virtual Monochromatic Imaging (VMI) reduces beam-hardening and metal artifacts while improving soft tissue visualisation and supporting accurate tissue characterisation. Colour-coded imaging enables semi-automatic tissue segmentation and material differentiation, making potential pathologies easier to identify. In addition, blended imaging combines high and low energy datasets to produce images with both exceptional contrast resolution and minimal noise, ensuring superior diagnostic confidence in every scan.

Advanced biomedical imaging.

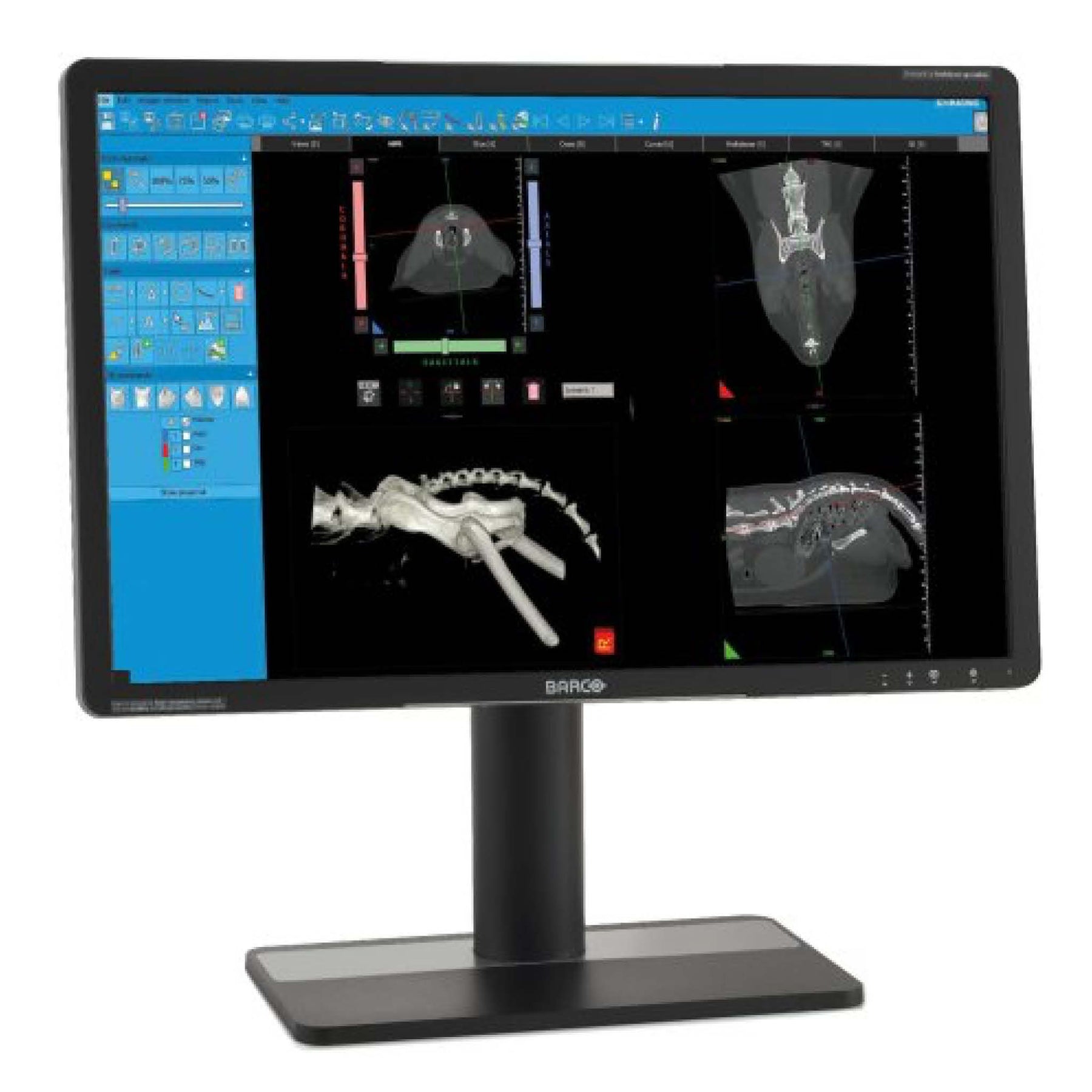

NEWTOM CBCT generates ultra-high definition volumetric images with native isotropic voxel resolution, non-overlapping sections and fewer artifacts. Unlike the spiral fan beam scan typical of other MSCTs, a single cone beam scan increases image quality, contains the X-ray exposure area and reduces costs.

The high-power X-ray generator with rotating anode and small focal spot (0.3 mm) maximises performance and ensures that emissions can always be adapted to specific needs. The large, latest-generation HD flat panel detector, with high signal/noise ratio, yields improved soft tissue display.

Innovative volumetric reconstruction algorithms and advanced filters minimise reconstruction times and optimise imaging.

Optimal postitoning.

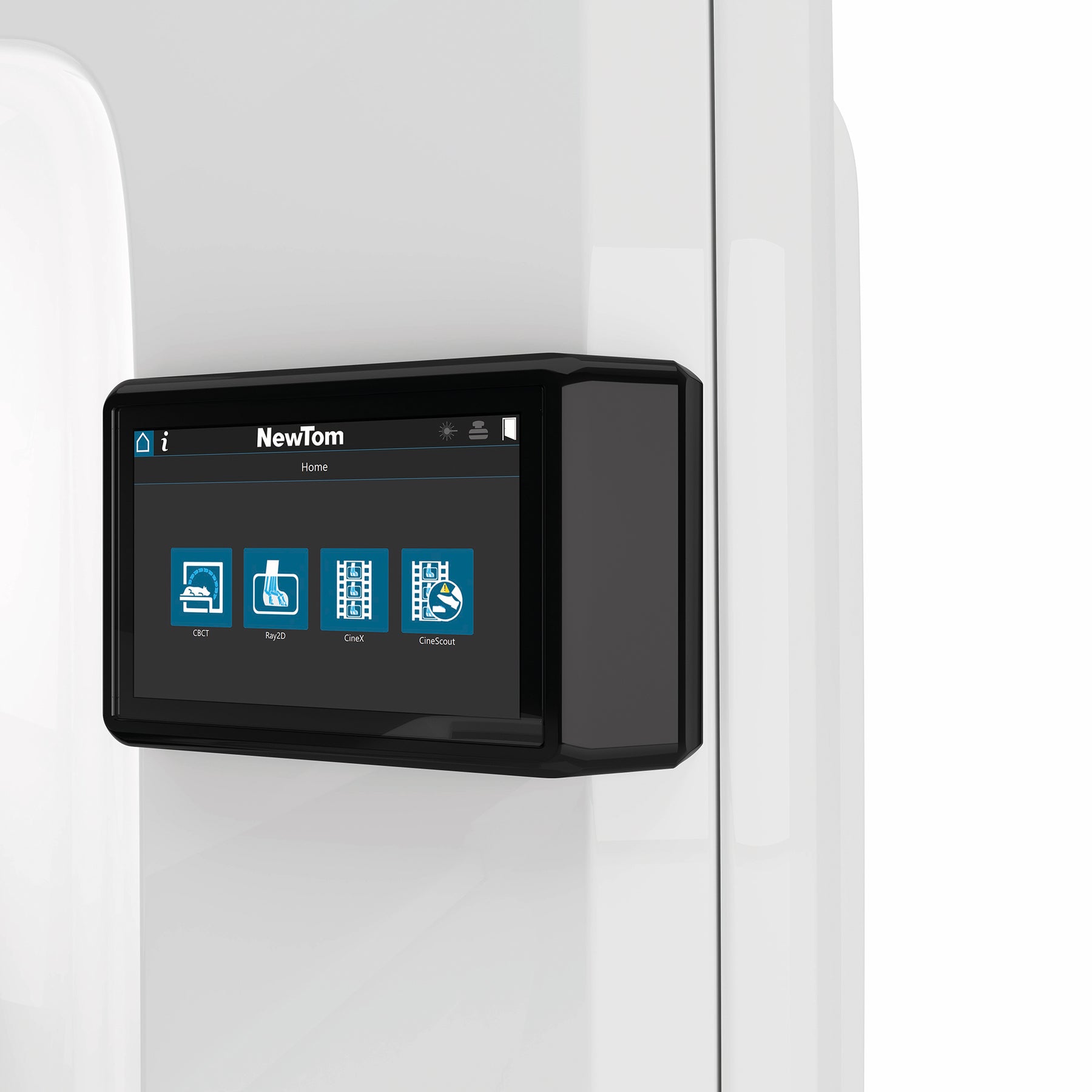

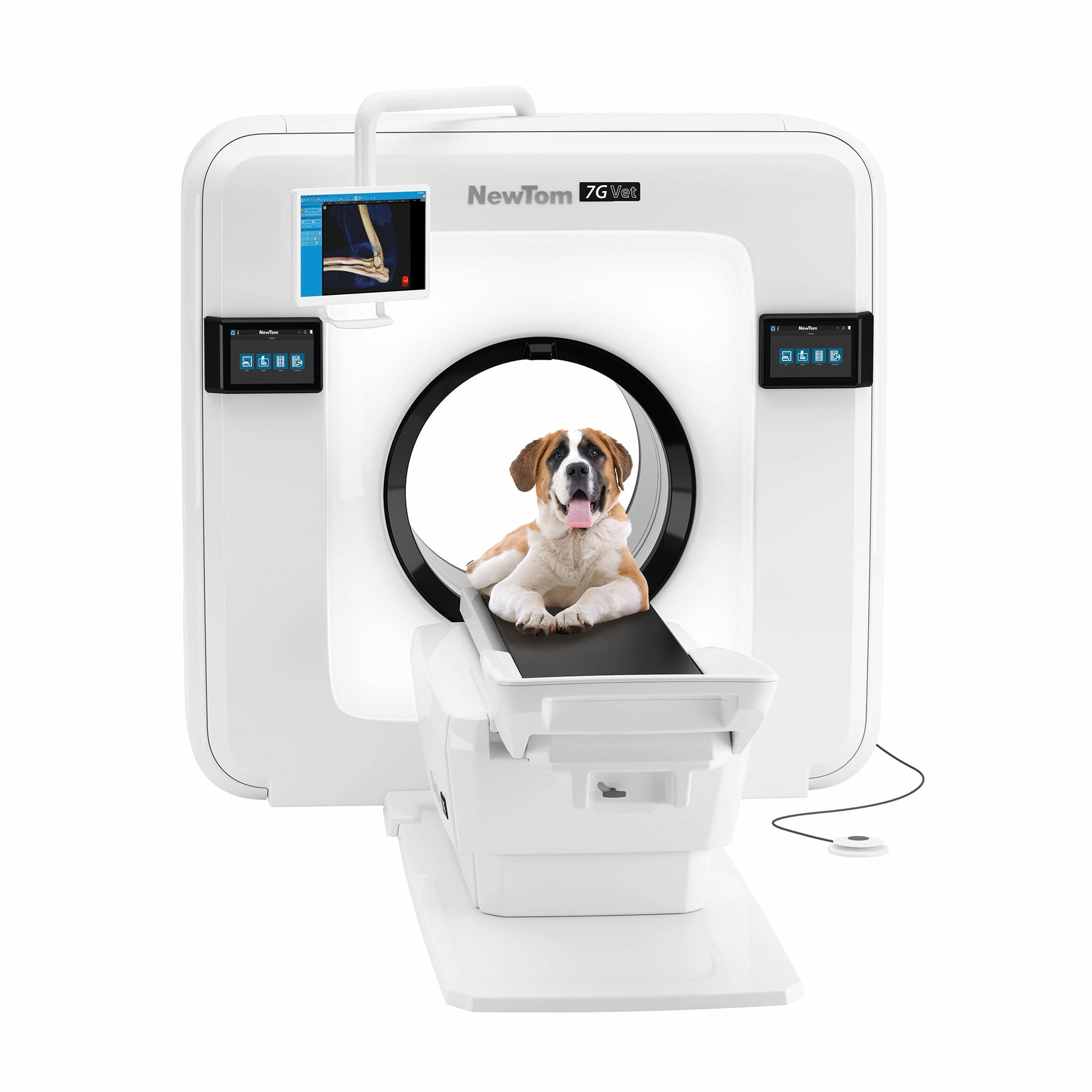

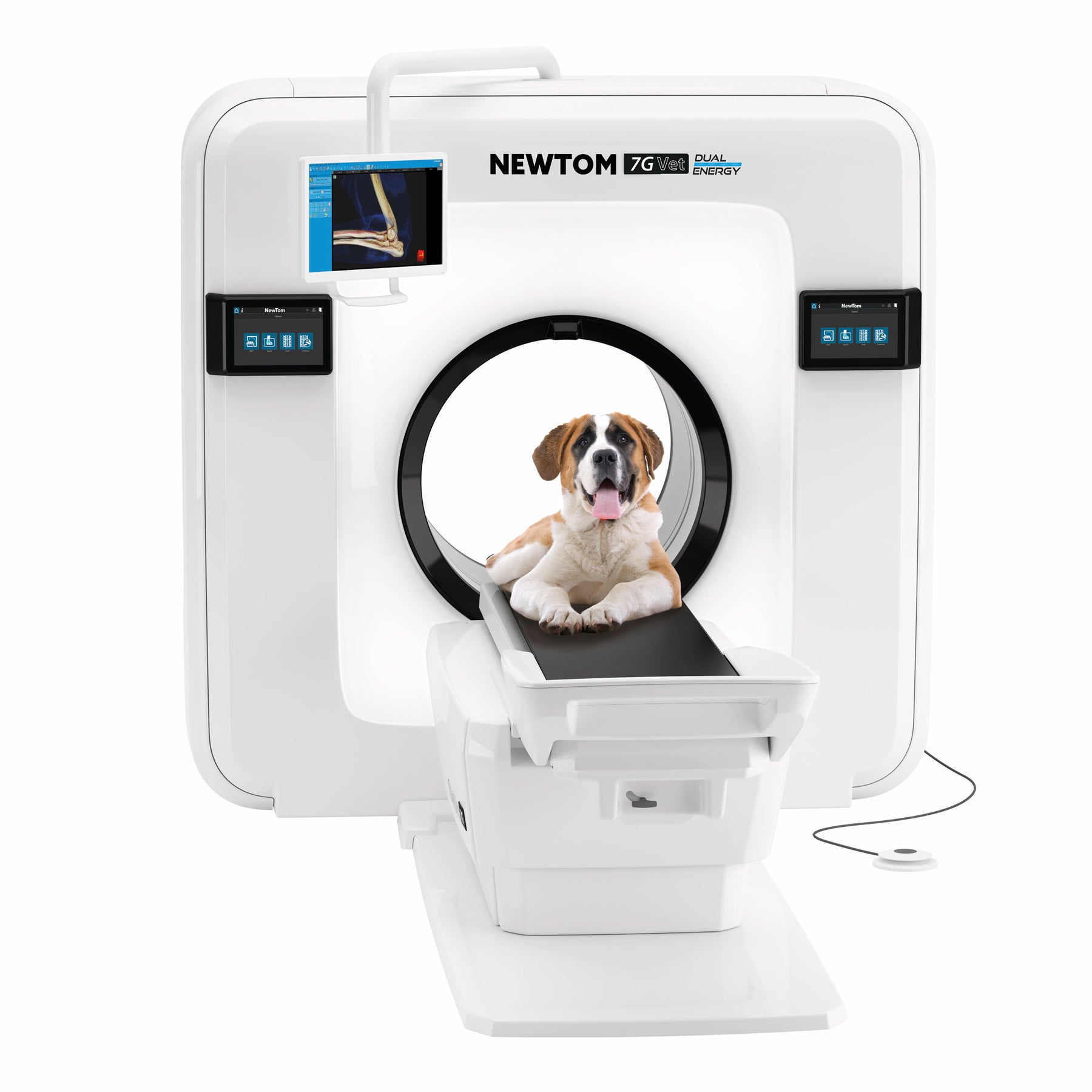

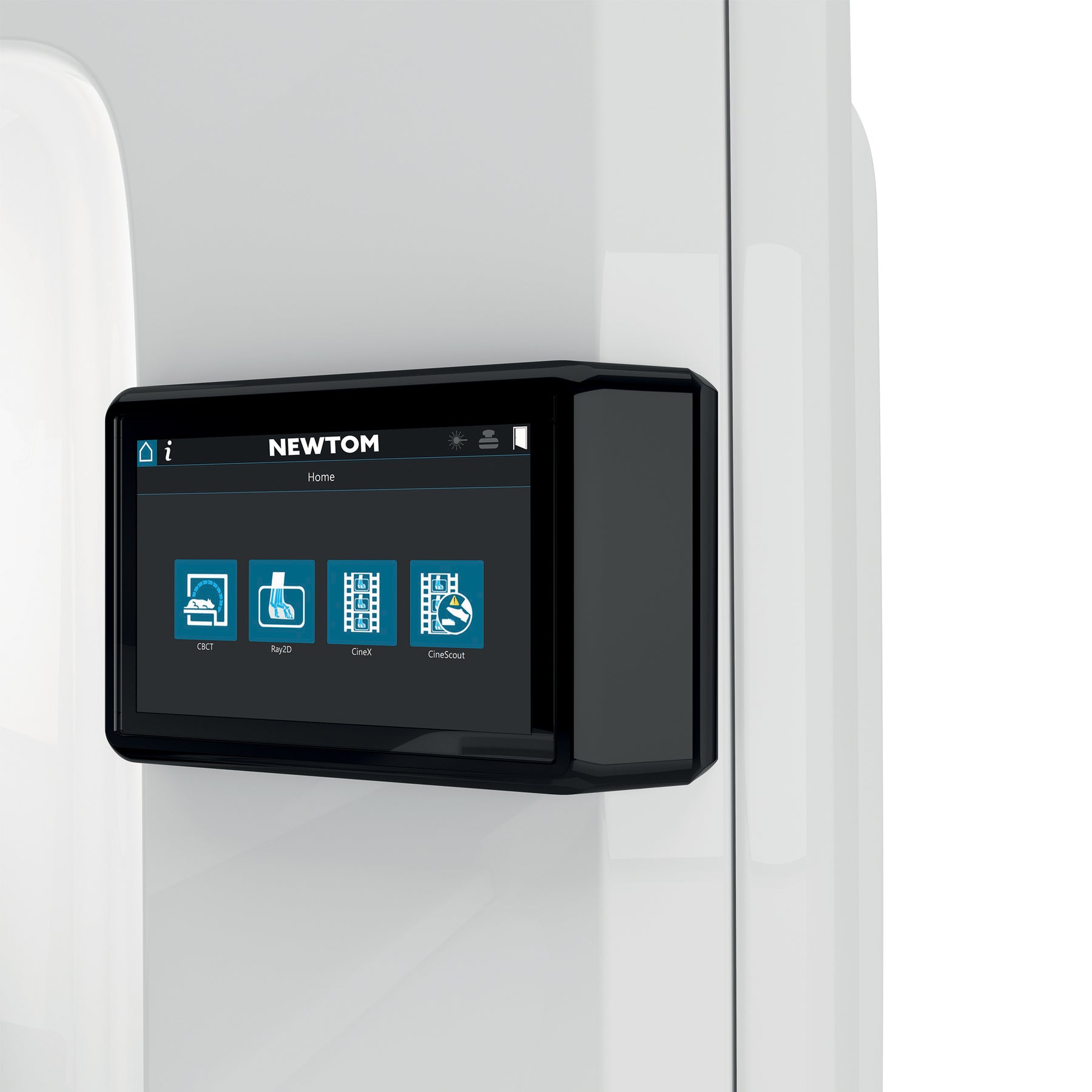

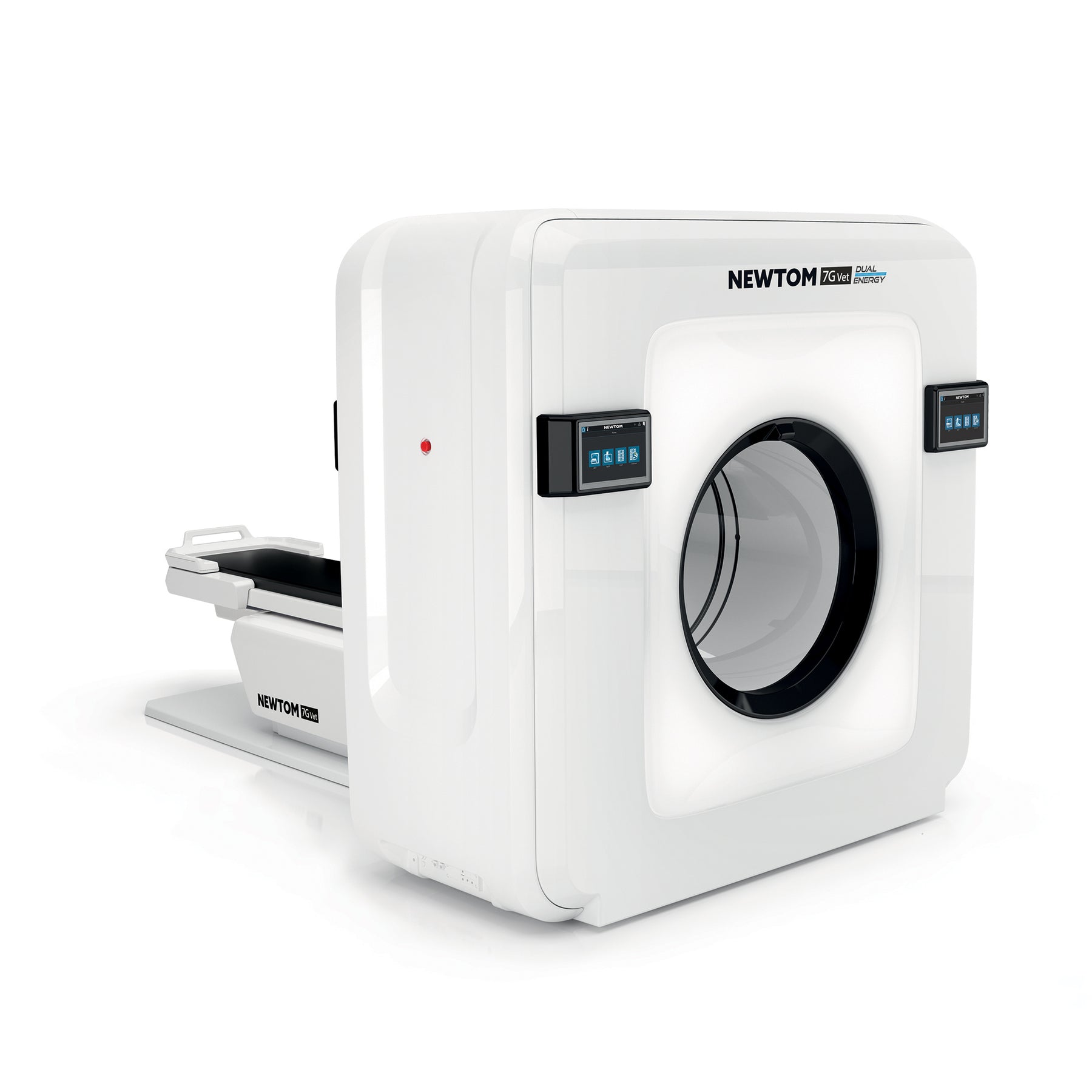

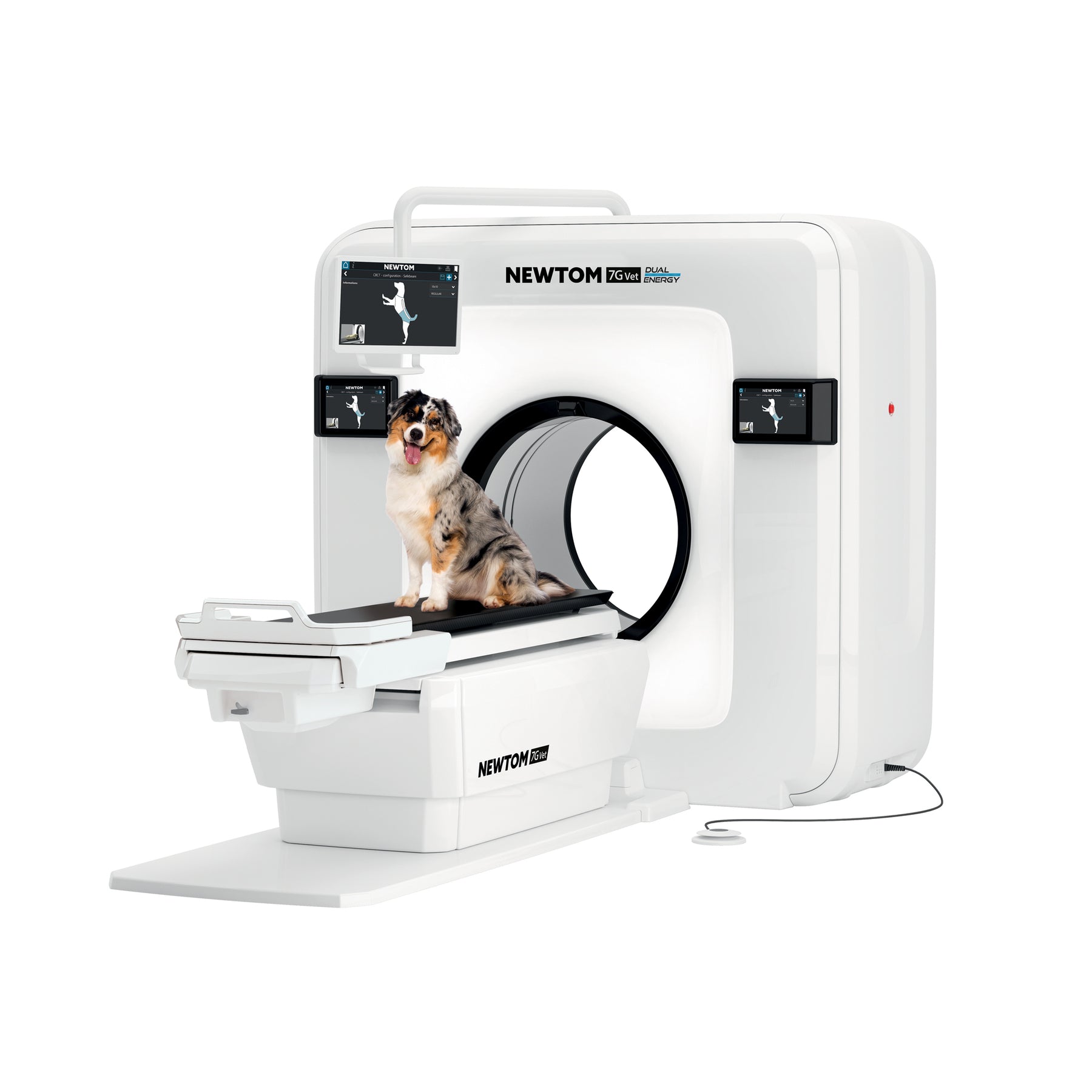

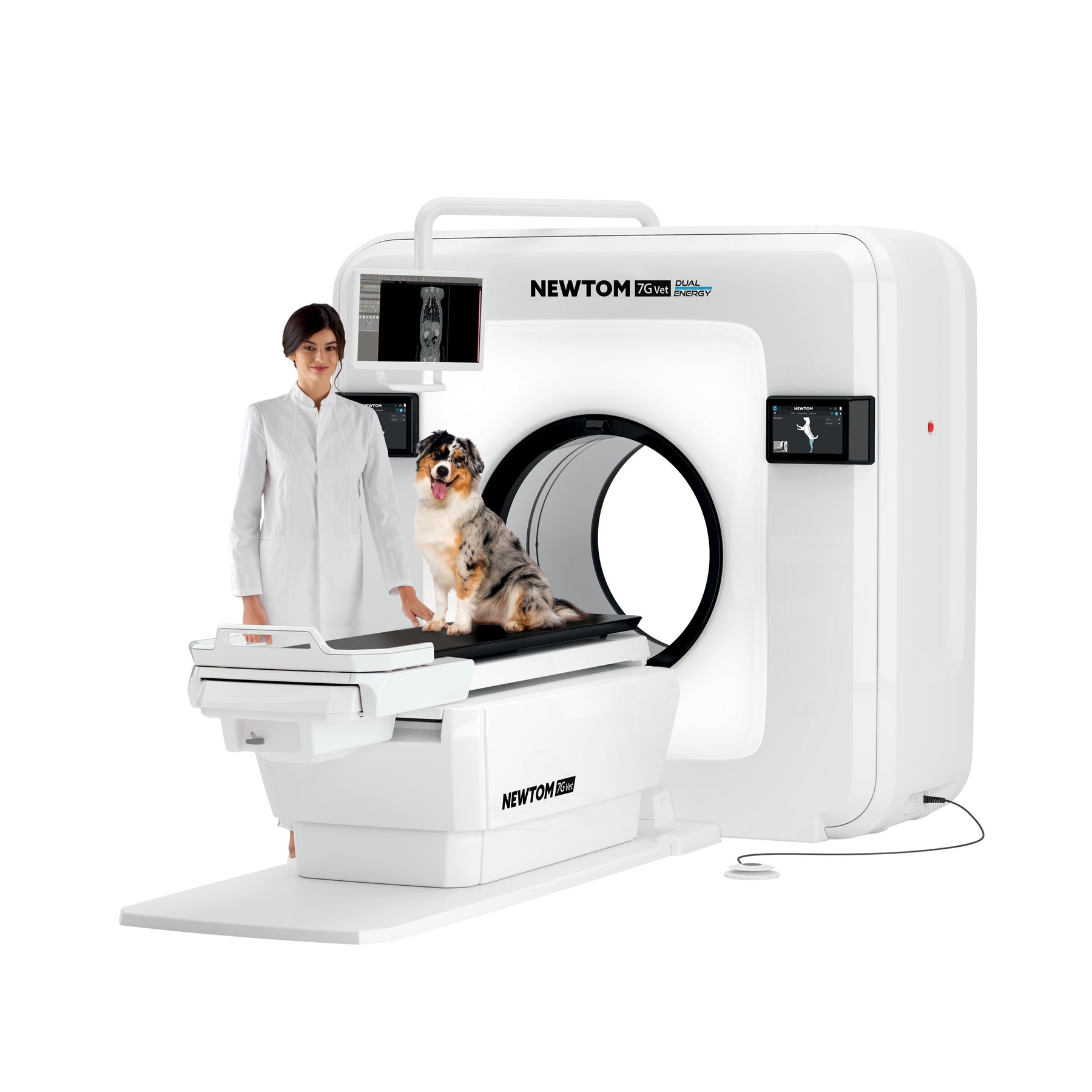

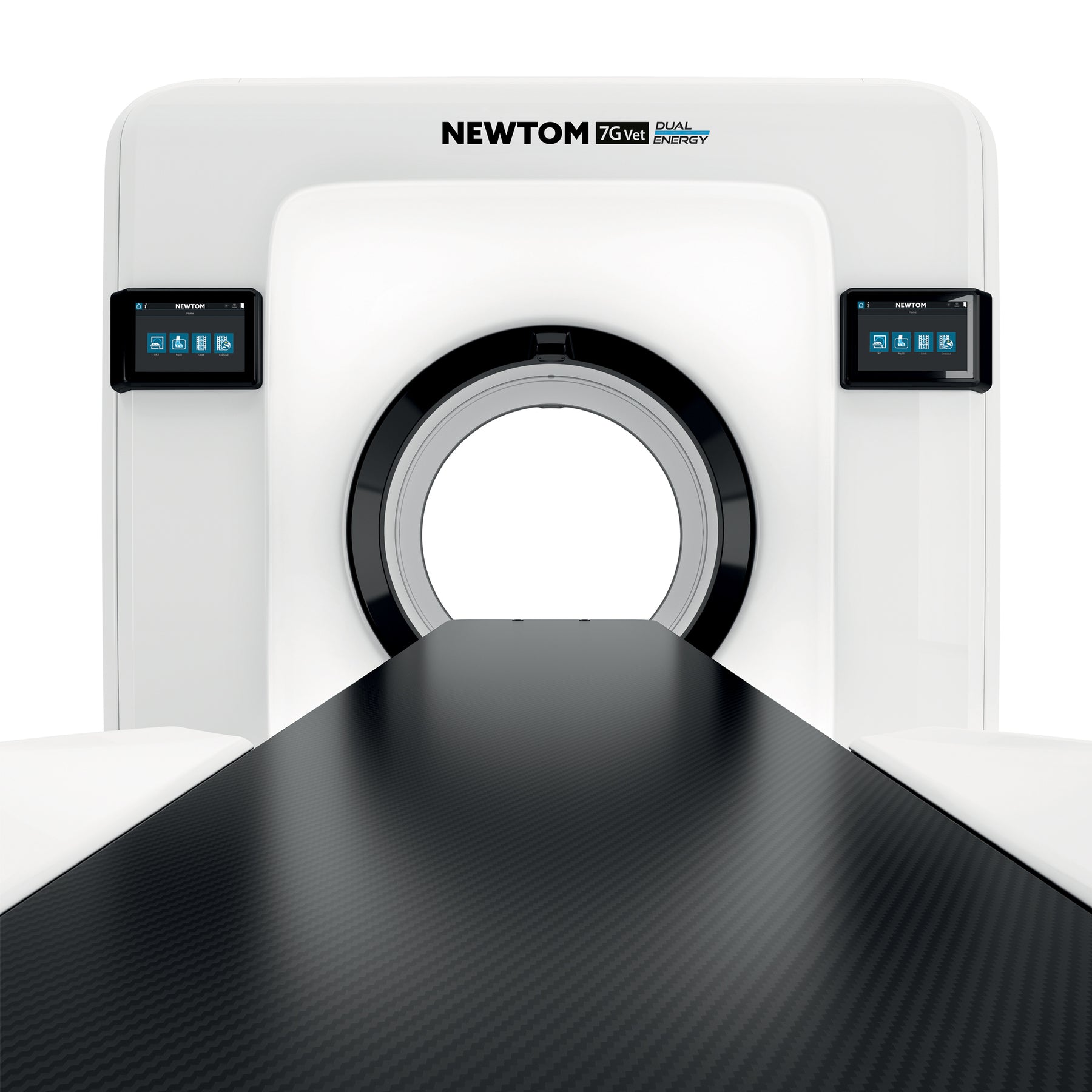

The large gantry opening expands the range of diagnostic options and simplifies patient positioning, allowing operators to select the pet's orientation on the table via the user-friendly interface, available on the machine via the 10” touch-screen and in a virtual version on the acquisition console. With openings on both sides, breathing control devices can be used without limiting operator access. The advanced patented kinematic system enables full rotations to be completed quickly, reducing examination times, while the interface guides precise positioning according to the anatomical area or specific diagnostic requirements.

A FOV for every application.

NewTom 7G VET has 15 FOVS, extendable to 30 with eXtra Functions. The eXtra FOV function lets users extend the field of view longitudinally to analyse anatomical structures such as the spine and limbs, up to 17x62 cm and 29x56 cm. This is an automated protocol which, via patient table movements, groups together from 2 to 4 FOVs in sequence in a single exam. Multi-scanning is automatic and can be modulated
according to clinical requirements.

Low X-ray Dose Protocols

The acquisition time and X-ray dose can be reduced through adaptive FOVs , the Ultra
Fast scan mode, or the ECO Low Dose scan mode. The pulsed emission CBCT technology activates the X-ray source only when necessary and the SafeBeam™ technology automatically adapts emissions to the patient's size.

SPECIFICATIONS

Download a pdf of NewTom 7G Vet Technical Specifications
